SLD RELOCATABLE LIGHTING TOWER
- Over 1000 Sqm of illumination (at 1 lux)
- Easily transported and relocated
- Minimal set up time on site
- Constant output lighting (no PIR)
- Ideal for temporary or semi-permanent illumination
- 160 lumen per watt
- Dimmable in 25% increments
- Inbuilt customisable smart programs
- Adjustable light head and solar panel orientation and angle
- Telescopic mast extends up to 4 metres high
- 2 year warranty for faulty workmanship or component failure not influenced by external means
- Please see the full instruction guide for in-depth explanations of the above modes.

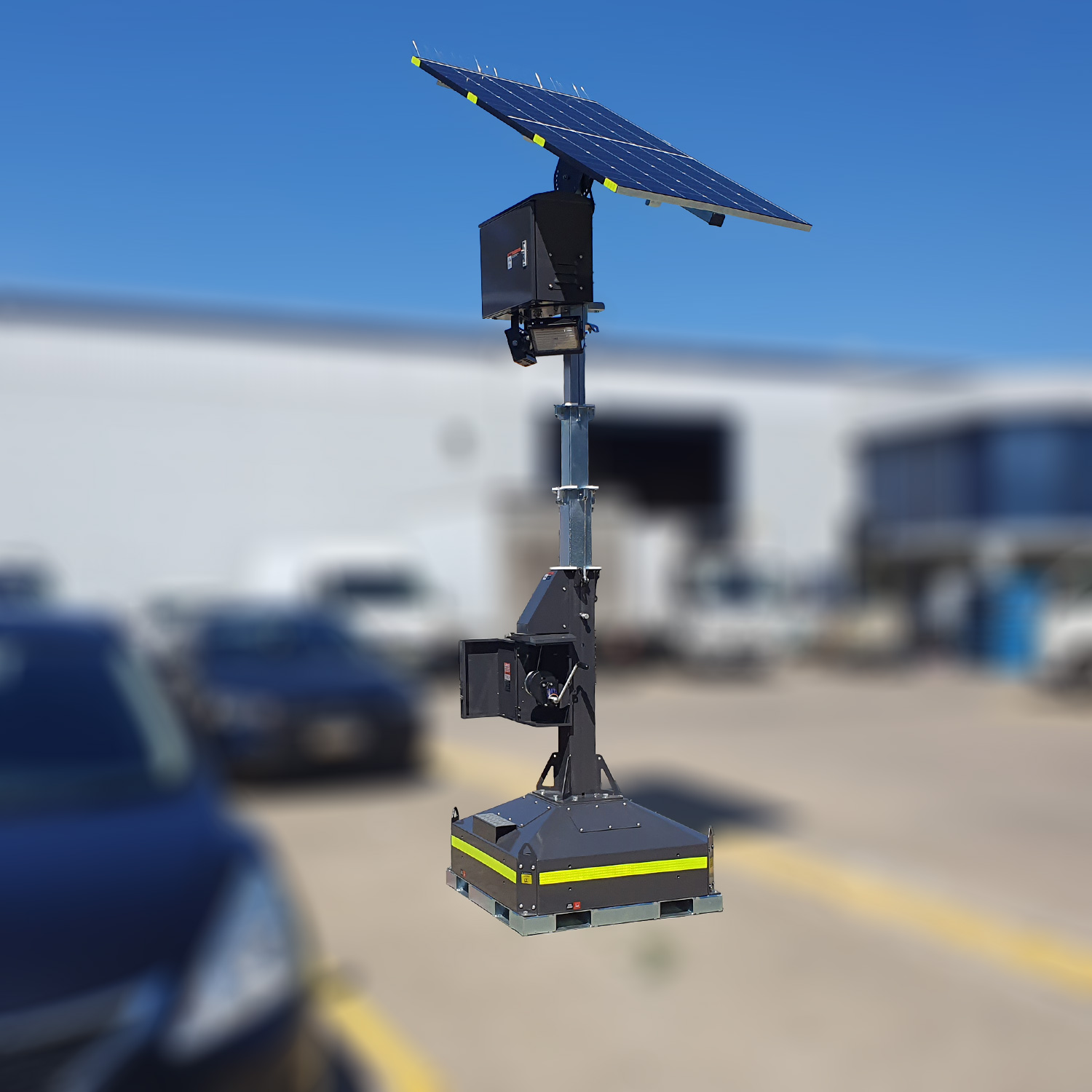

The SLD Relocatable Solar Lighting Tower is ideal for temporary or semi-permanent illumination of car parks, construction sites, mining camps, events, and roadworks. Forklift tyne access points and a height adjustable telescopic tower ensure ease of transport and minimal setup time on site. A premium 200 Amp Hour LiFePO4 battery combined with the light output achieved by the 160 lumen/watt pivoting LED’s deliver superior dusk to dawn lighting. The exceptional 19200 lumen output is dimmable in 25% increments further increasing the autonomy. The 435w solar panel solar panel can be rotated 360 degrees horizontally and 90 degrees vertically ensuring maximum photovoltaic conversion and minimum recharge time. Bird spikes are a standard feature.
SKU |
MLT435 |
SOLAR PANEL WATTAGE |
435W |
LED OUTPUT |
2 x 60W |
LUMEN OUTPUT (25% OUTPUT) |
4800 lm |
LUMEN OUTPUT (50% OUTPUT) |
9600 lm |
LUMEN OUTPUT (75% OUTPUT) |
14400 lm |
LUMEN OUTPUT (100% OUTPUT) |
19200 lm |
BATTERY TYPE |
LiFePO4 |
BATTERY SPECS |
12.8V 200AH (2560Wh) |
LIGHTING TIME (25% OUTPUT) |
76.8 Hours |
LIGHTING TIME (50% OUTPUT) |
38.4 Hours |
LIGHTING TIME (75% OUTPUT) |
25.6 Hours |
LIGHTING TIME (100% OUTPUT) |
19.2 Hours |
Correlated Colour Temp (CCT) |
5000K |
Dimensions (collapsed) |
1025 x 1150 x 2900mm |
Dimensions (full extension) |
1800 x 1150 x 5175mm |
Recharge (Solar Panel) |
Setting dependentt |
Recharge (AC240V Charger) |
2.5 Hours |
Mast Finish |
Galvanised Steel |
Base Finish |
Powdercoated Galvanised Steel |
Mast Finish |
Galvanised Steel |
Warranty Period |
2 years |
- Manual on/off
- Automatic dusk on/dawn off
- Programmable lighting periods
- Programmable timer control
Please see the full instruction guide for in-depth explanations of the product.
APPLICATIONSSecurity/Perimeter Lighting | Home | Office | Factory | Factory
WHAT IS A LUMEN?In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.
FAMILIAR EXAMPLES- A typical 4 x D cell battery maglite will emit approx. 70 lumens
- The average path light using 2-3 LEDs emits 15-18 lumens
- A 25W incandescent globe emits approximately 160 lumens
