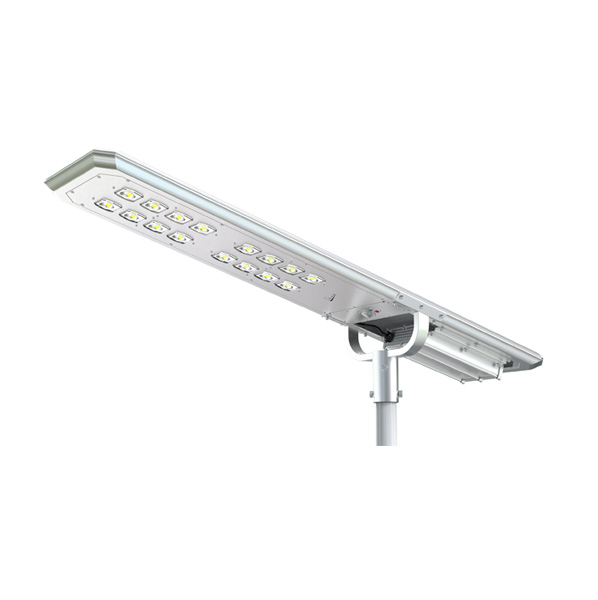

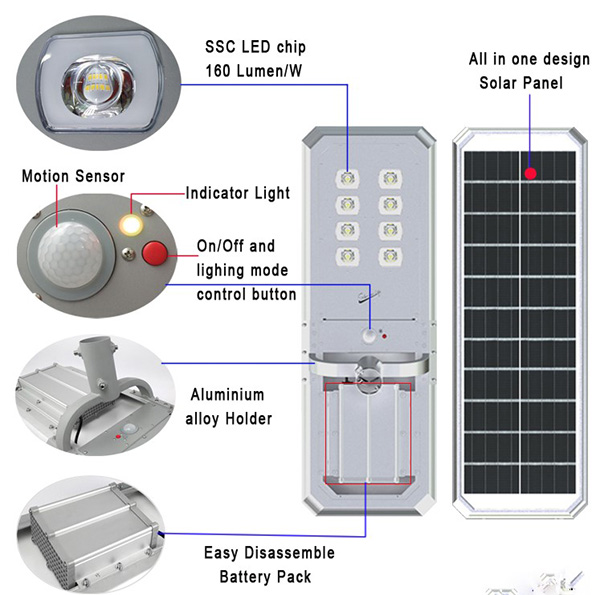

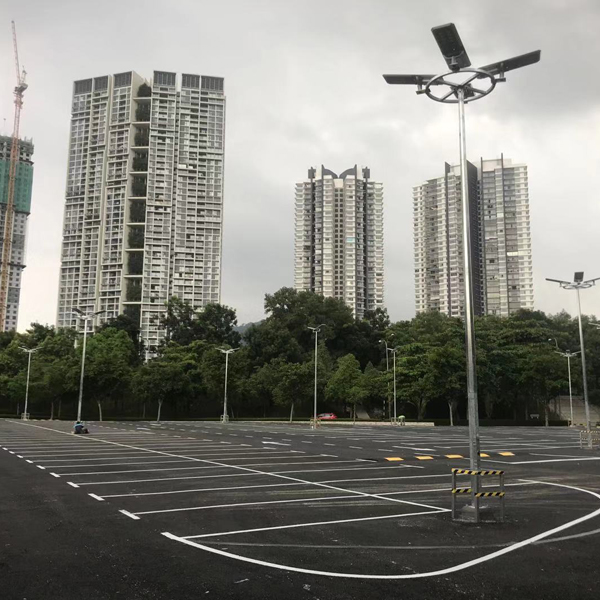

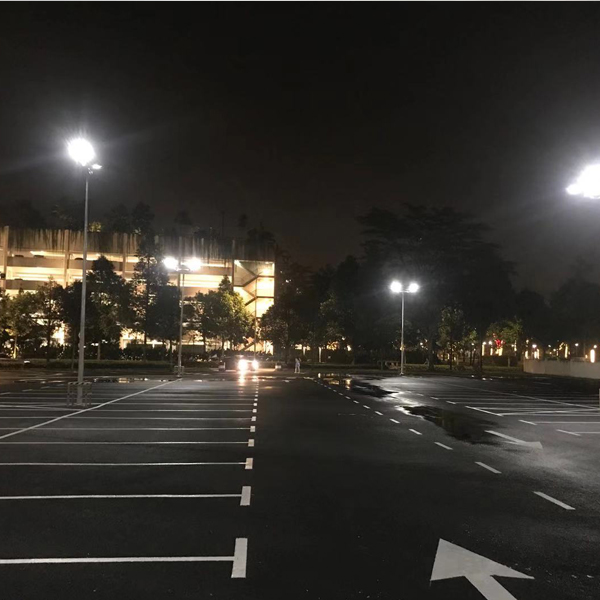

The Atlas range of solar lighting is available in multiple light intensity outputs to cater for applications from dog parks, path and cycleways to large area car park lighting. All models feature versatile and easily selectable built-in programs that change the mode of operation allowing one light to adapt to multiple applications. The integrated design incorporates a high-efficiency solar panel, Lithium-ion battery and LED array in one, easy to install package without the need for trenching, cabling or an electrician.
| SKU | SOLL100 |
| Solar Panel Wattage | 72W |
| LED Output | 100W |
| Lumen Output | 10800 lm |
| Battery Type | Lithium-ion |
| Battery Specifications | (693Wh) 45AH 14.8V |
| Autonomy | > 7 nights |
| Correlated Colour Temp (CCT) | 6000K |
| Fixture Size | 1536 (I) x 381 (w) x 84 (h) mm |
| Light Source | 160x OSRAM 3030 |
| Recharge | 4-6 hours |
| Mounting Height | 8 – 10 metres |
| Mounting | 90mm Column – 60mm Spigot |
| Finish | Satin natural aluminium finish |
| Warranty Period | 3 years |

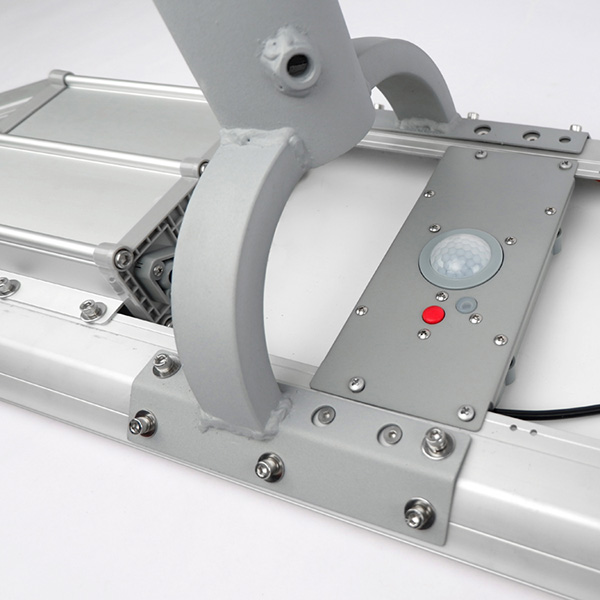

Accessed by using the red ON/OFF button. Hold the red button to turn the light on or off.
Short press of red button when the light is on will scroll through the operational modes.
Mode1, Red indicator light. The light will opearate at 30% output until the PIR(passive infrared sensor) in activated where it will operate at 100% until no movement is detected, returning to 30%
Mode 2, Green indicator light. 5 hours at 100% output then the light will operate at 25% output until the PIR (passive infrared sensor) is activated where it will operate at 100% until no movement is detected, returning to 25%. The light will remain in this mode until 2 hours before dawn where the mode changes to a constant 70% output until dawn.
Mode3, Orange indicator light. 70% output until dawn
In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.
• A typical 4 x D cell battery maglite will emit approx. 70 lumens
• The average path light using 2-3 LEDs emits 15-18 lumens
• A 25W incandescent globe emits approximately 160 lumens
