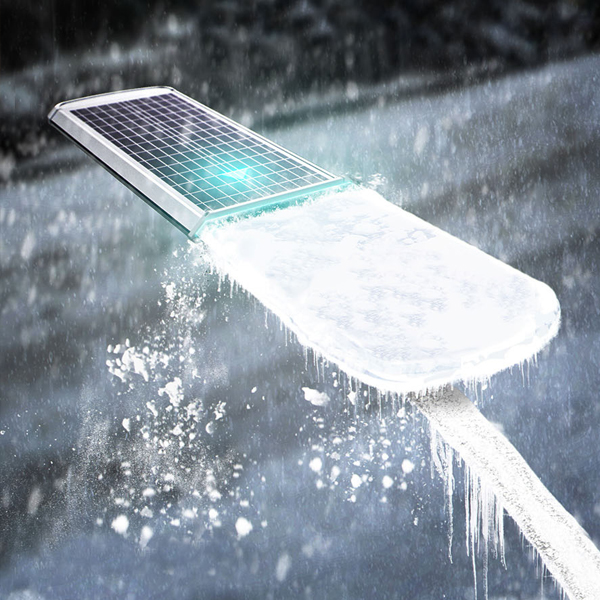

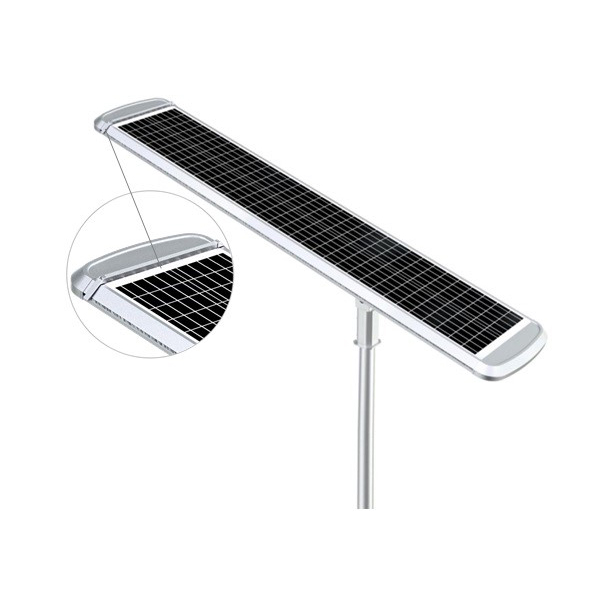

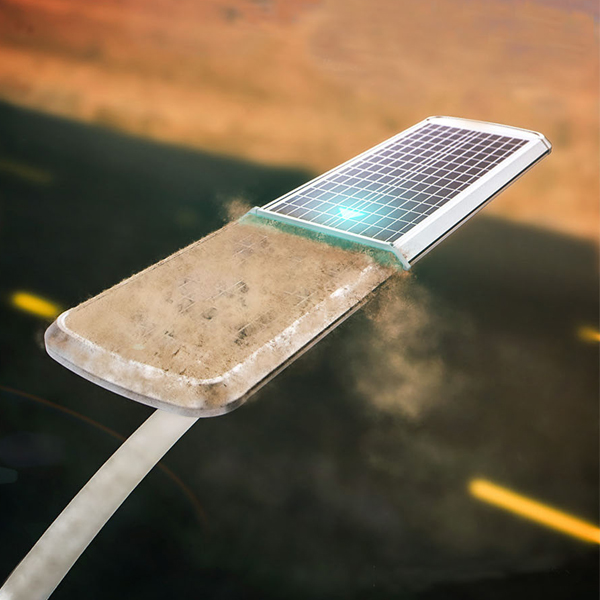

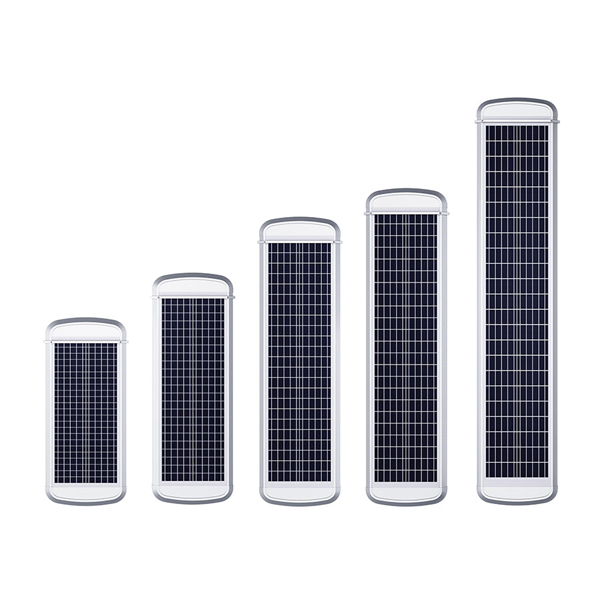

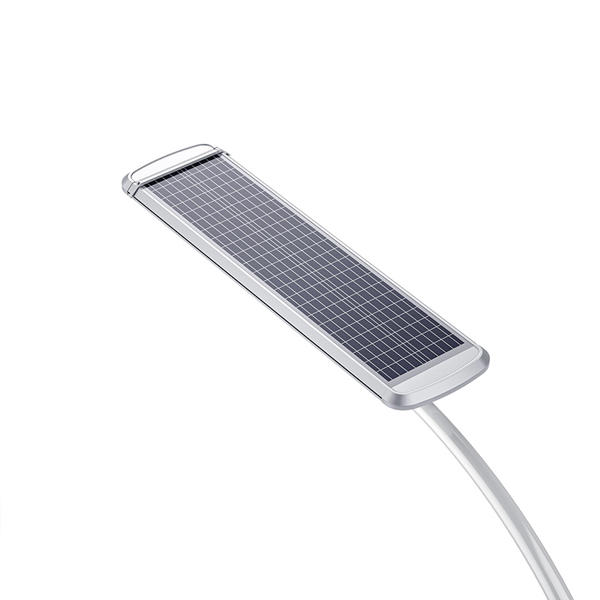

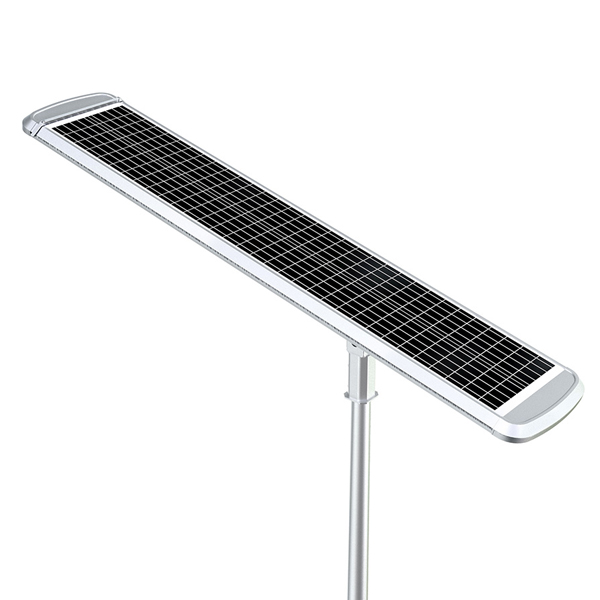

Our self-cleaning range of solar lighting is designed for areas where sea spray, dust, dirt or snow may cover the panel preventing the battery being charged fully. Available in 40, 60, 80, 100 and 120w outputs catering for multiple applications. All models feature the unique automatic solar panel self-cleaning function that automatically cleans the solar panel, the cleaning bars sweeps over the panel up and back three times in the morning and then once every six hours. The integrated design incorporates a high-efficiency solar panel, Lithium-ion battery and LED array in one, easy to install package without the need for trenching, cabling or an electrician.
| SKU | SOLCL40 |
| Solar Panel Wattage | 35.7W |
| LED Output | 40W |
| Lumen Output | 4300 lm |
| Battery Type | Lithium-ion |
| Battery Specifications | (262.08Wh) 17.7ah 14.8V |
| Autonomy | > 7 nights |
| Correlated Colour Temp (CCT) | 6000K |
| Fixture Size | 903(l) x 410(w) x 85(h) mm |

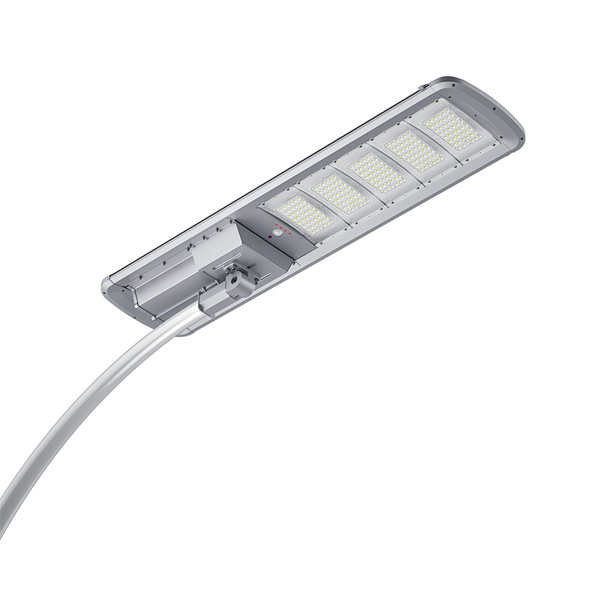

| Light Source | 96x OSRAM 3030 |
| Recharge | 4–6 hours |
| Mounting Height | 4–5 metres |
| Mounting | 60mm Column – 60mm Spigot |
| Finish | Satin natural aluminium finish |
| Warranty Period | 3 year |
The light output is completely programmable to suit your specific site requirements. Below are optional modes of operation we have previously programmed. Changing the mode of operation does not affect the cleaning function
• 30% output until the PIR is activated, operating at 100% until no movement is detected, returning to 30%
• 5 hours 100% output then 25% output until the PIR is activated, operating at 100%. 2 hours before dawn, mode changes to a constant 70% output until dawn
• Constant 70% output dusk until dawn
• 5 hours at 100% output then 25% output until dawn
In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.
Familiar examples
• A typical 4 x D cell battery maglite will emit approx. 70 lumens
• The average path light using 2-3 LEDs emits 15-18 lumens
• A 25W incandescent globe emits approximately 160 lumens
