Product Code: SOLLBB/105
Product Availability: In stock

SOLAR BILLBOARD LIGHTING TRIPLE


  • Stylish and functional solar lighting

  • Pivoting LED modules deliver lighting control

  • Smart lighting programmed Mode of Operation

  • Automatic dusk to dawn lighting

  • Ideal from small to medium billboards and signs

  • 210 lumen/watt LED output

  • Integrated all-in-one design

  • Premium-grade solar lighting. Fully sealed aluminium body in a powder coated black finish

  • Custom brackets or powder coated poles manufactured on request

  • 2 year warranty for faulty workmanship or component failure not influenced by external means

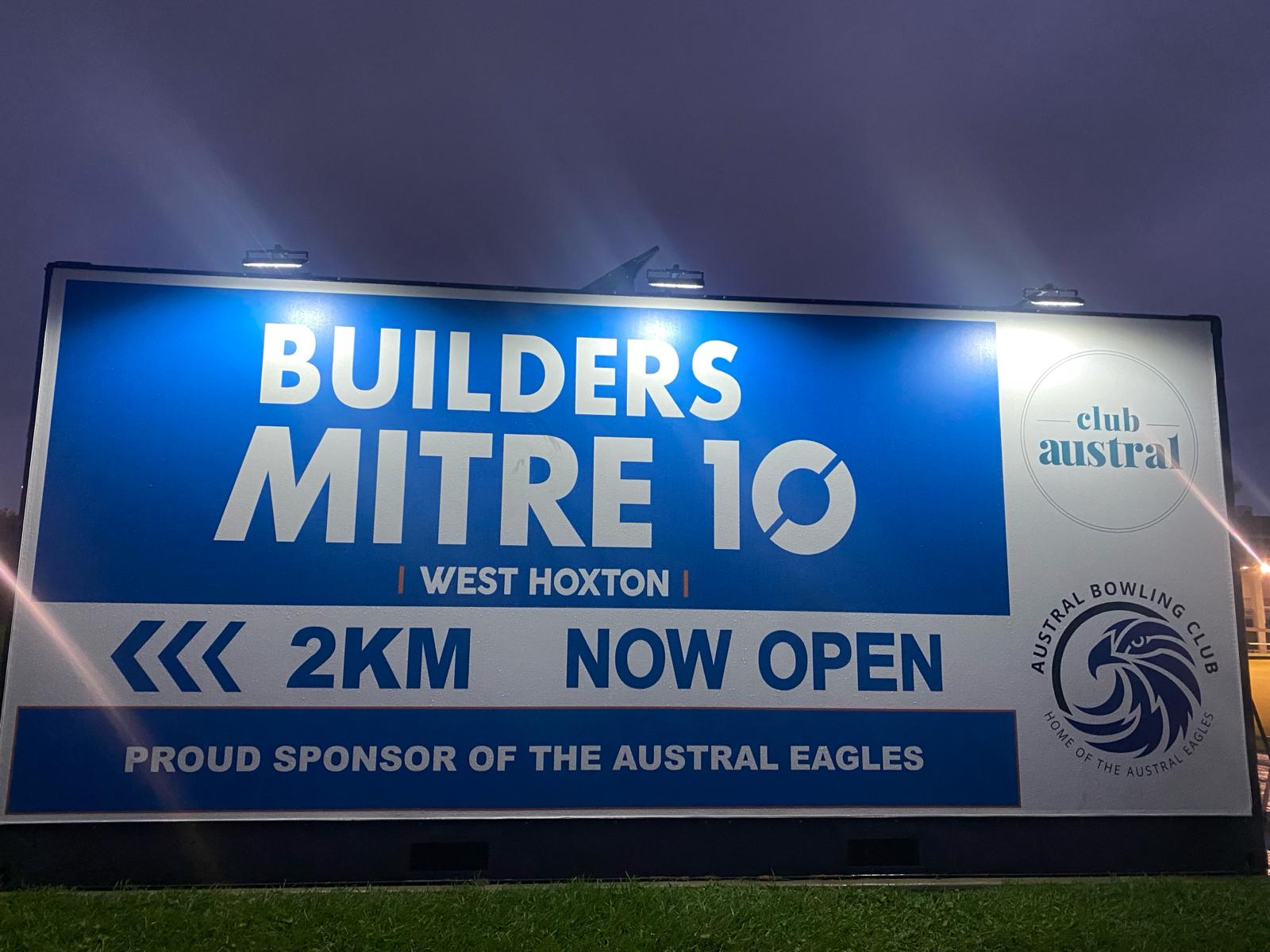

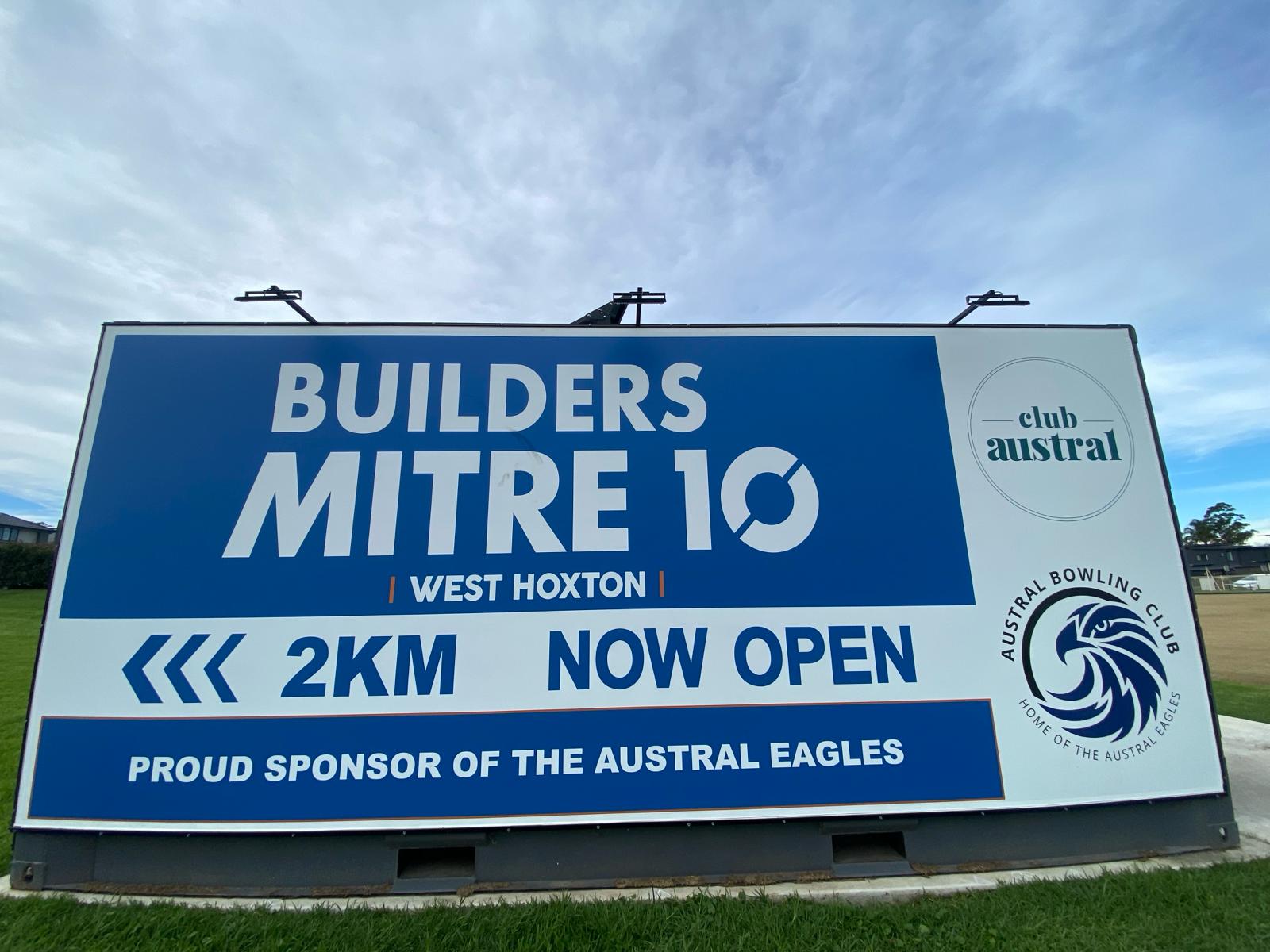

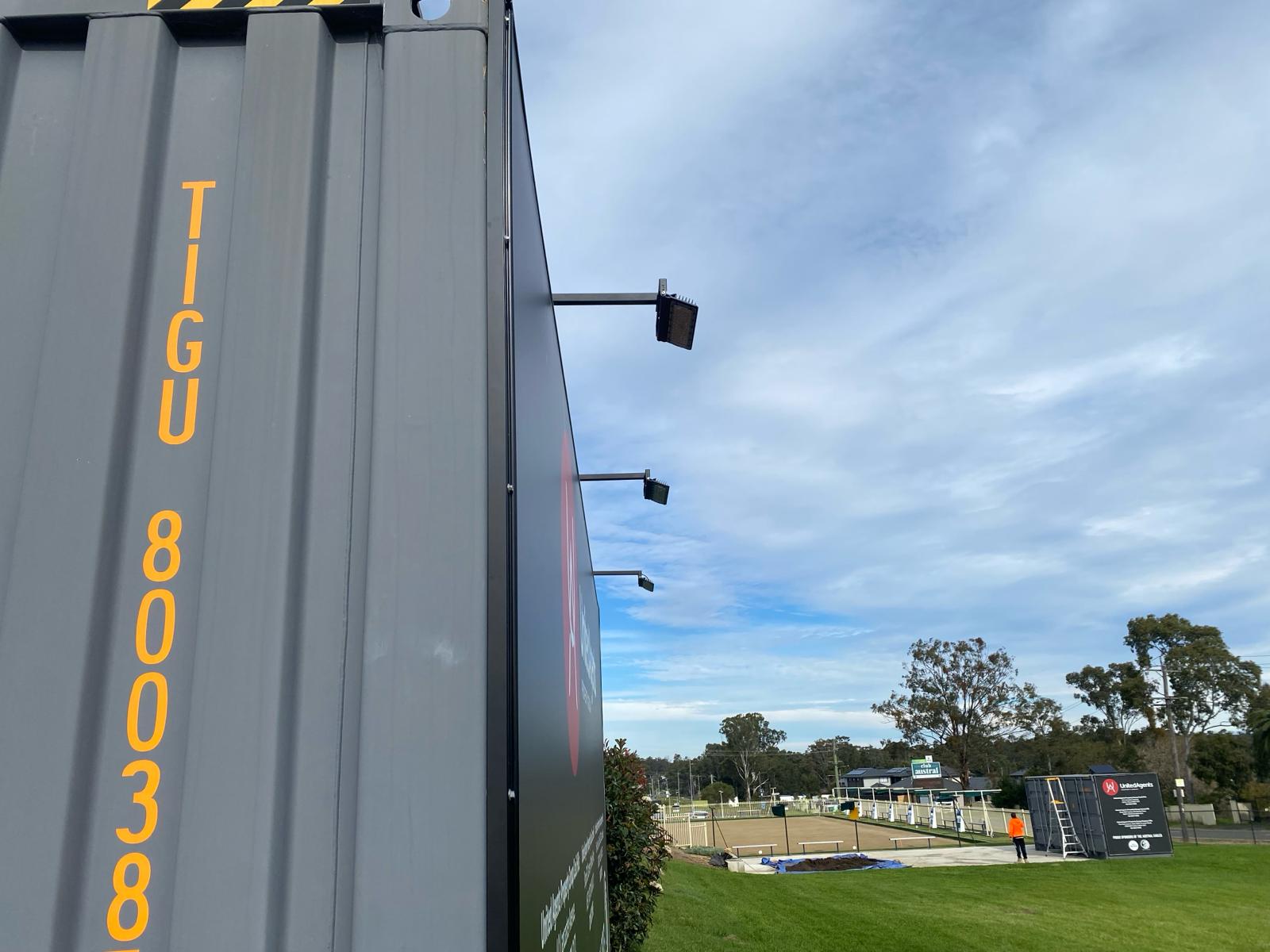

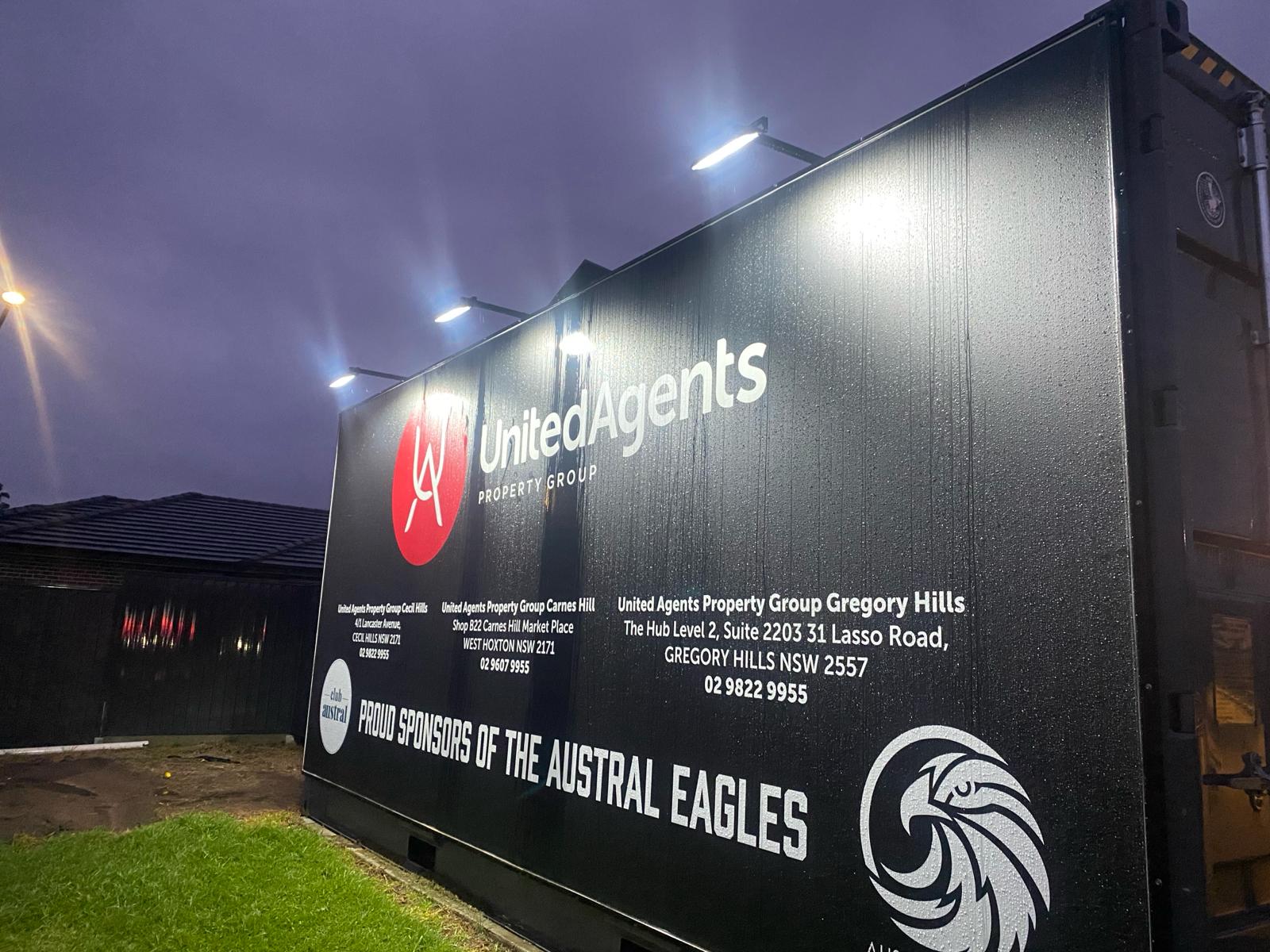

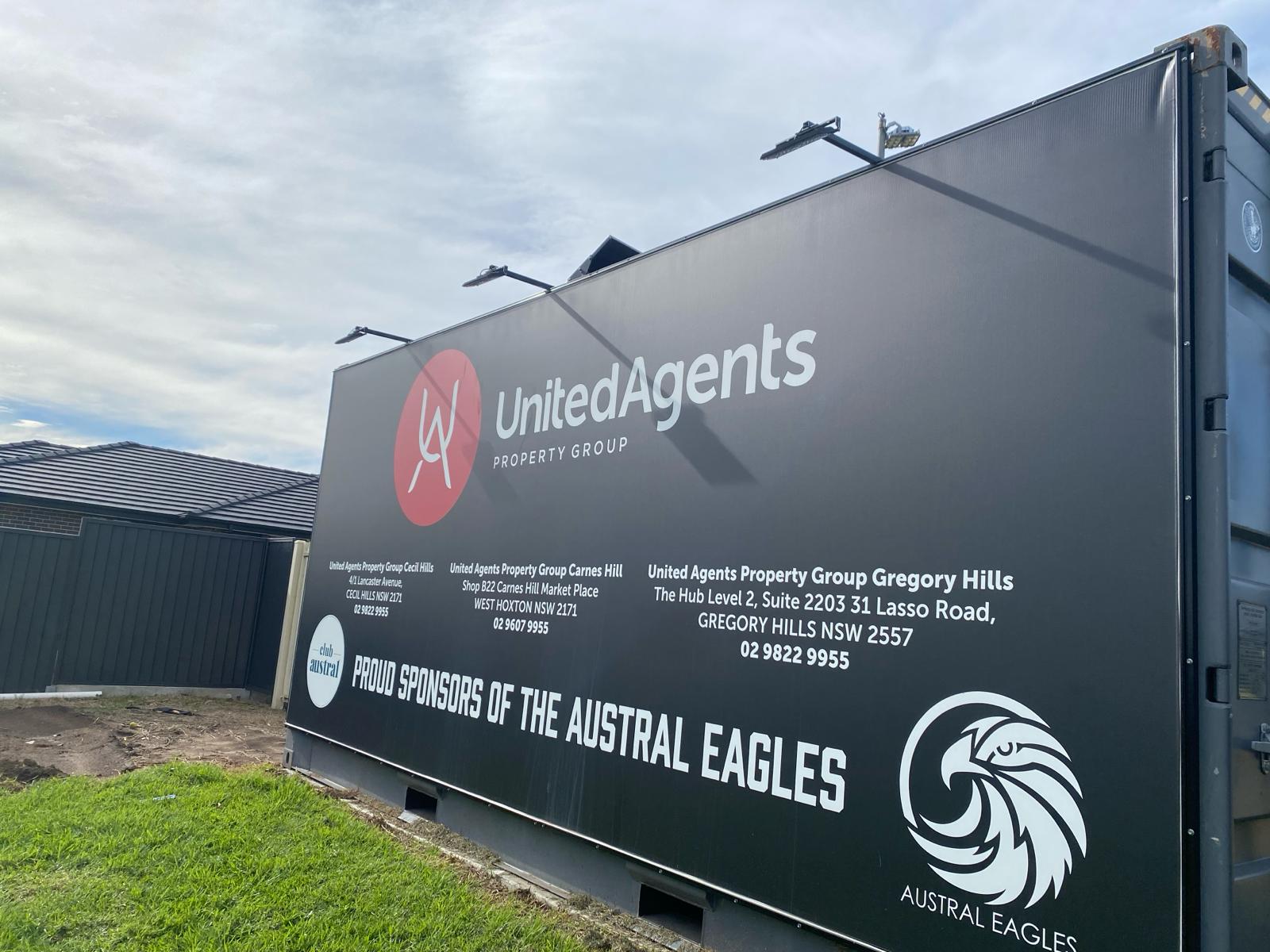

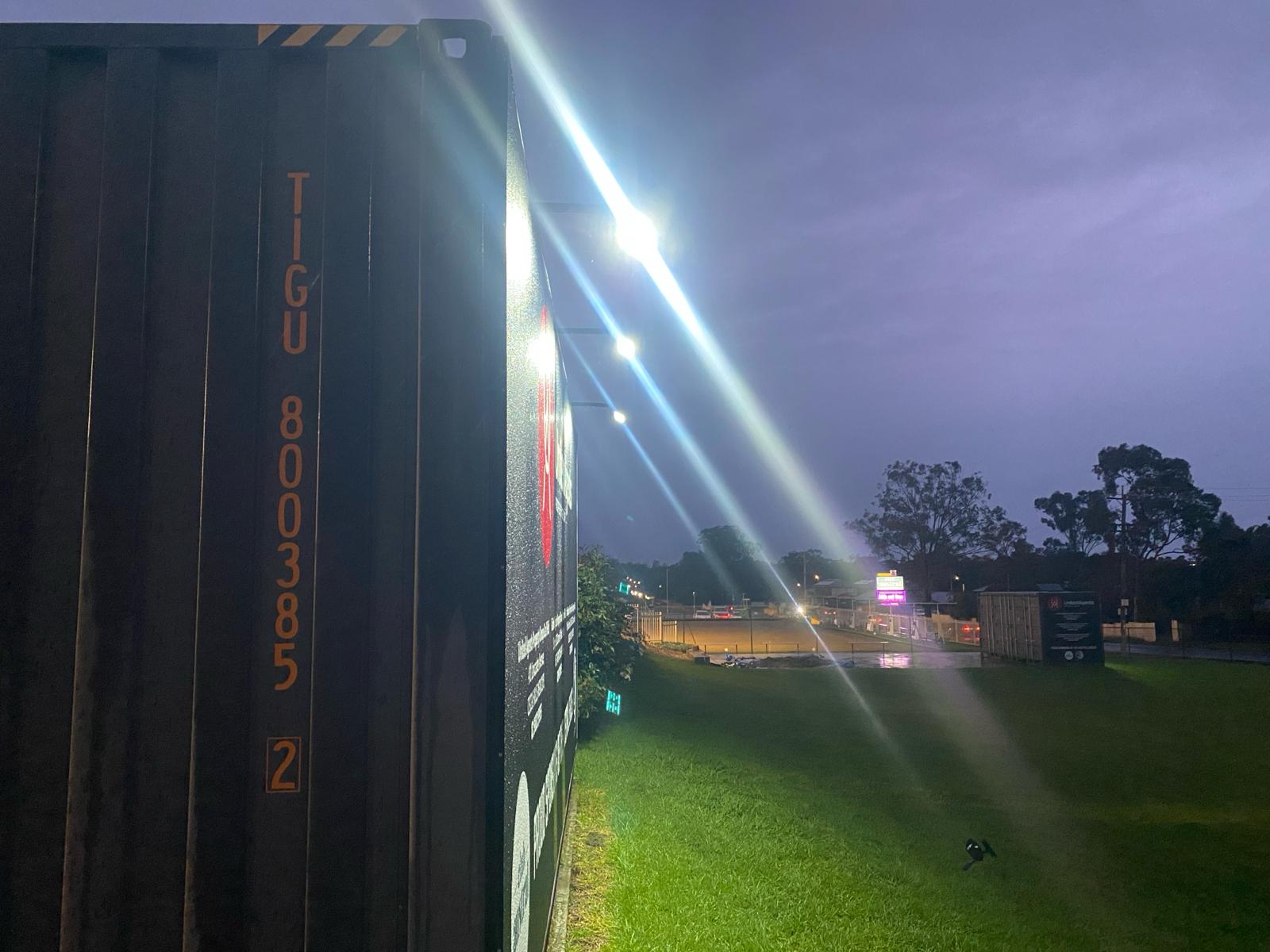

Solar Lighting Design commercial grade solar billboard and sign lights are a simple and efficient method of illuminating billboards, entry statements, advertising and building entry signage without connection to mains power. We offer several lighting solutions that will illuminate billboards of most sizes and designs. The lights automatically illuminate at dusk to follow intelligent programmed mode of operation ensuring the message is visible from dusk to dawn. The product is supplied with all necessary equipment for most installations including solar panel, high quality LiFeP04 batteries, battery enclosure, charge controller, mounting brackets and highly efficient, pivoting LED fixtures that allow for lighting from above or below.

SKU

SOLLBB/105

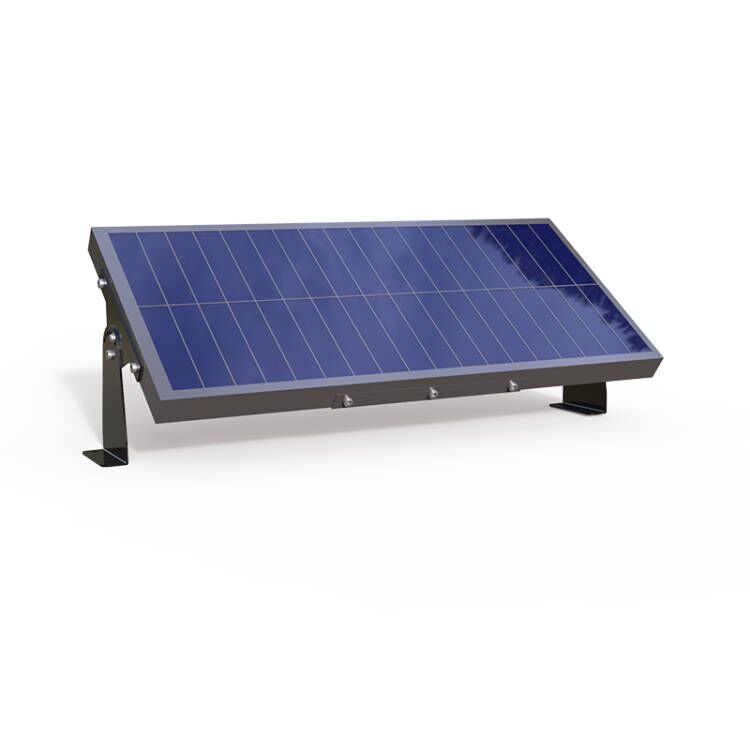

Solar Panel Wattage

100W

LED OUTPUT

35W per light

LUMEN OUTPUT

7000lm per light

BATTERY TYPE

LiFePO4

BATTERY SPECS

576Wh

AUTONOMY

2 – 3 nights on a full charge

Correlated Colour Temp (CCT)

6000K

Light Source

Philips LED

Recharge

4 – 5 hours

Mounting Height

Various

Mounting

Mounting above or below sign face

Finish

Finish Powdercoat Black

Warranty Period

2 years

Additional Information
OPERATIONAL MODES

Default program – Auto ON at dusk. 100% output for 2 hours, 80% output for 3 hours then 25% for 7 hours or until dawn, whichever is first.

WHAT IS A LUMEN?

In simple terms, Lumens are a measure of the total amount of visible light from a lamp or light source. The higher the lumen rating, the “brighter” the lamp will work.

FAMILIAR EXAMPLES
  • A typical 4 x D cell battery maglite will emit approx. 70 lumens
  • The average path light using 2-3 LEDs emits 15-18 lumens
  • A 25W incandescent globe emits approximately 160 lumens
